Graffunder Vault Doors have these dimensions prefixed by "Bishop, Castle, Emporer & Fortress" for the Series.
| Model |
Series |
Size |
Weight |
| 7834 |
Bishop |
W-34", H-78", D-3.5" |
1,300lbs. |
| 8240 |
Bishop |
W-40", H-82", D-3.5" |
1,500lbs. |
| 7834 |
Castle |
W-34", H-78", D-4.0" |
1,800lbs. |
| 8240 |
Castle |
W-40", H-82", D-4.0" |
2,050lbs. |
| 7834 |
Emporer |
W-34", H-78", D-4.5" |
2,300lbs. |
| 8240 |
Emporer |
W-40", H-82", D-4.5" |
2,625lbs. |
| 7834 |
Fortress |
W-34", H-78", D-4.5" |
2,300lbs. |
| 8240 |
Fortress |
W-40", H-82", D-4.5" |
2,625lbs. |
Vault door sizes are the rough opening.

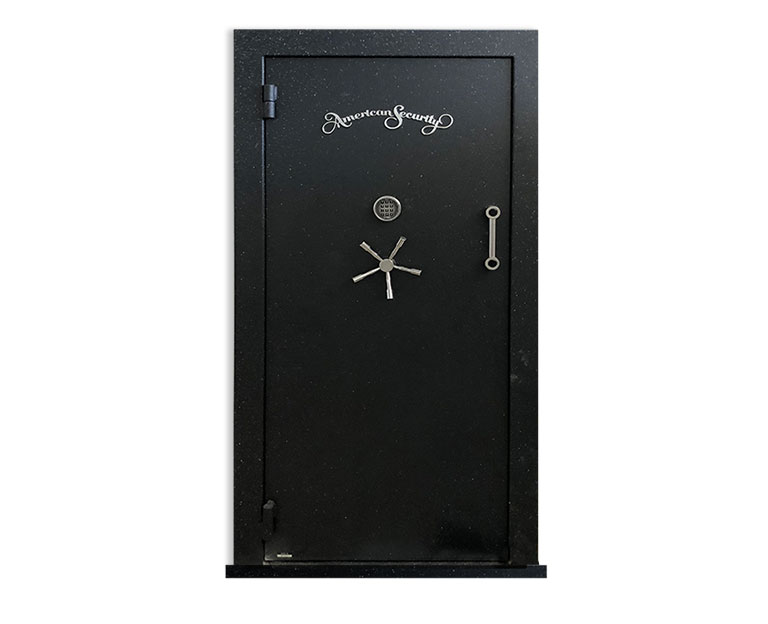

American Security Vault Doors
American Security Vault Doors have these dimensions.
| Model |
Series |
Size |
Door Size |
Weight |
| VD8030BFQIS |
V-Inswing |
W-29.5", H-79.5" |
Door size: 20.375"x77" |
490 lbs. |
| VD8030BFQ |
V-Outswing |
W-29.5", H-79.5" |
Door size: 24.75"x77.5" |
506 lbs. |
| VD8036BFQIS |
V-Inswing |
W-35.5", H-79.5" |
Door size: 26.25"x77" |
556 lbs. |
| VD8036BFQ |
V-Outswing |
W-35.5", H-79.5" |
Door size: 31"x77.5" |
592 lbs. |
| VD8030BFIS |
V-Inswing |
W-29.5", H-79.5" |
Door size: 20.375"x77" |
672 lbs. |
| VD8030BF |
V-Outswing |
W-29.5", H-79.5" |
Door size: 24.75"x77.5" |
695 lbs. |
| VD8036BFIS |
V-Inswing |
W-35.5", H-79.5" |
Door size: 26.25"x77" |
792 lbs. |
| VD8036BF |
V-Outswing |
W-35.5", H-79.5" |
Door size: 31"x77.5" |
819 lbs. |
Vault sizes are the rough opening.
